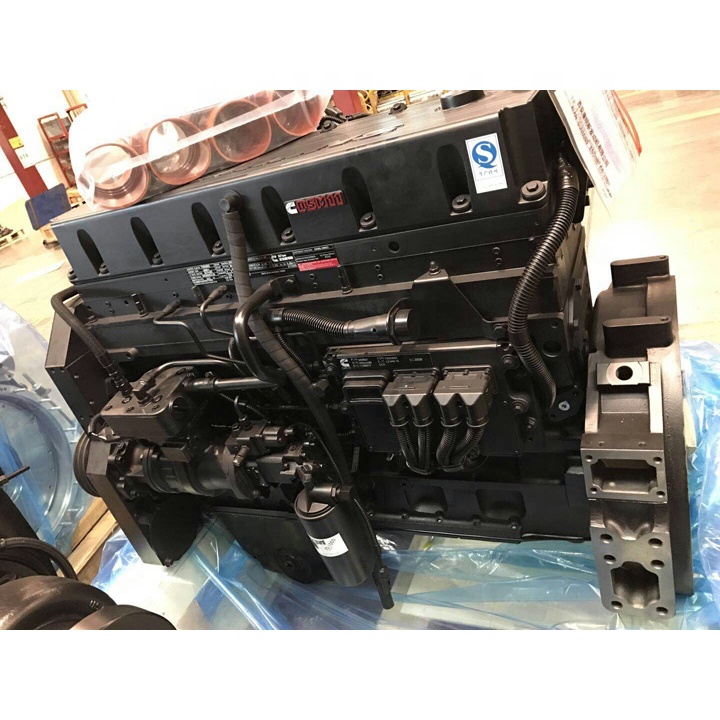

Construction QSM11 Engine Assembly for BELAZ Dump Truck

Applicable Industries: Building Material Shops, Construction works Mining
Application: BELAZ 7540 dump truck
Place of Origin: Shaanxi, China
After-sales Service Provided: Overseas service center available.
Warranty: one year
  • QSM11
  • XCEC
Availability:
Quantity:

XCEC diesel engine QSM11 series

The high-pressure fuel injection system of QSM is combined with the electronic control function to ensure the clean, powerful and efficient continuous operation of the engine. The electronic control module (ECM) of QSM monitors the operation data in real time and continuously optimizes the fuel air mixture ratio to achieve the best combustion efficiency. This not only improves the engine response speed, improves the fuel economy, but also significantly reduces the noise level.

Engine Type
In-Line, 6-Cylinder
Manufacture
(XCEC)Xi'an
Cummins Engine Co., Ltd.
Rated Speed
2100RPM
Oil system
41 U.S. qt(39 L*)
Displacement
10.8 L
Coolant
10 U.S. qt(9.5 L*)
Rated power
400hp
Length
51.4 in(1306 mm)
(298 kW)
Peak Torque
1050-1400 lb-ft
Width
36.0 in(914 mm)
(1424-1898 N•m)
Bore and Stroke
4.92 in x 5.79 in
Height
50.4 in(1280 mm)
(125 mm x 147 mm)
Aspiration
Turbocharged/Aftercooled
Weight (wet)
2,170 lb(984 kg)
Oil temperature (℃)
≤121
Compression Radio
15.9:1
Constant load steady state volatility
±0.25%
Rated Power Production
≦±5%
